AfterVLX 80 Fixed / Picture Window in Boca Raton, FL | Sightline Windows & Doors Boca Raton
The VLX 80 Fixed / Picture Window is a maximally glazed fixed aluminum frame built for homeowners who refuse to compromise on their view. Zero visible hardware. Floor-to-ceiling glass. Clean sightlines from edge to edge. At Sightline Windows & Doors Boca Raton, we’re the authorized ViewLux installation partner Boca Raton homeowners trust for precision-fit fixed window systems that turn walls into panoramas. Whether you’re overlooking the Intracoastal, a golf course fairway, or your own pool terrace in Boca Raton, this window was engineered to disappear and let the landscape take over. Call us at (561) 200-8592 to schedule your free on-site measurement and written estimate.
Product Overview - VLX 80 Fixed / Picture Window
Fixed windows don’t open. That’s the point. The VLX 80 Fixed / Picture Window commits fully to what a fixed window should do: frame the outside world without distraction.

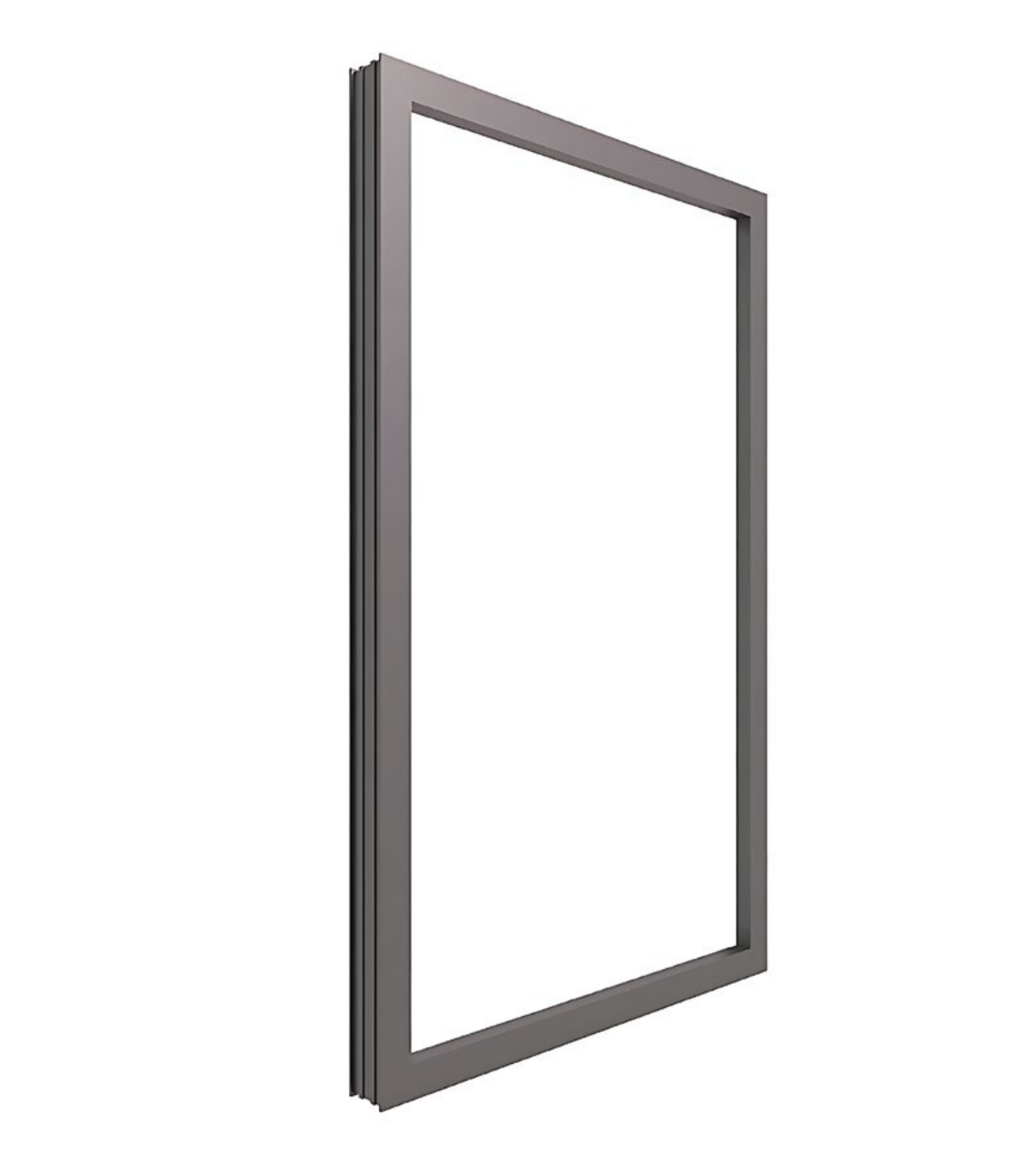

The design philosophy here is subtraction. No sashes. No cranks. No locks breaking the plane of glass. Just a slim aluminum perimeter holding the largest possible glazed area. The frame profile measures 1.97 inches in width, thin enough to read as architectural trim rather than window bulk. At 0.079 inches of wall thickness, the extrusion carries real structural integrity without visual weight.
In Boca Raton, we install the VLX 80 where the view is the feature. Living rooms facing east toward the Atlantic. Master suites positioned for sunrise. Great rooms with double-height ceilings that demand a window scaled to the architecture. The maximum span reaches 120 inches wide, which means single-panel installations that most window systems can’t touch. For larger openings, multiple units mulled together maintain the same minimal sightlines.
The aluminum construction resists the salt air and humidity that degrades lesser materials in South Florida. Unlike vinyl that expands and contracts dramatically in our heat, or wood that demands constant attention against moisture intrusion, this frame holds its dimensions and finish year after year. That’s why architects specifying modern and transitional homes in Boca Raton keep returning to this system.
Technical Specifications
| Specification | VLX 80 Fixed / Picture Window |
|---|---|
| Frame Material | Extruded aluminum, 0.079″ wall thickness |
| Profile Width | 1.97″ frame depth |
| Maximum Panel Width | Up to 120″ (10 feet) single span |
| Operation Type | Fixed / non-operable picture window |
| Visible Hardware | None - zero exposed fasteners or operators |
| Thermal Performance | Thermal break technology, NFRC-rated |
| Glass Options | Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint |
| Finish Options | Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood |
| Installation Standard | AAMA 2400/2410 compliant |
| Perimeter Sealing | AAMA 812 low-expansion foam sealant |
| Impact Rating | Impact-resistant laminated glass available |
| Wind Load Rating | Rated for South Florida wind-load requirements |
BeforeAfterPerformance Features
Thermal Efficiency
The VLX 80 incorporates thermal break technology that separates interior and exterior aluminum surfaces with a low-conductivity barrier. NFRC-rated energy performance means measurable U-factors and Solar Heat Gain Coefficients you can compare against other products. In Boca Raton’s cooling-dominated climate, the thermal break reduces heat transfer that would otherwise force your AC to work harder against the glass perimeter.
Acoustic Performance
Fixed windows inherently outperform operable units for sound control - no operable sash means no gap for noise transmission. Laminated glass options add mass and damping that further reduce exterior sound penetration. For homes near Palmetto Park Road, Federal Highway, or any Boca Raton location where traffic or aircraft noise matters, this combination delivers measurable quiet.
Airtightness & Weather Seal
Every VLX 80 we install receives AAMA 812 low-expansion foam sealant at all perimeter joints. This isn’t generic caulk. The foam expands to fill irregular gaps, cures to a flexible seal, and maintains airtightness through seasonal thermal cycling. The result is a fixed window that performs closer to a wall assembly than a typical window for air infiltration resistance.
Waterproofing
South Florida rain arrives hard and horizontal. The VLX 80 frame system includes engineered drainage pathways and compression seals that manage water at the source. Our AAMA 2400/2410 compliant installation adds redundant flashing and sealant strategies at the rough opening interface. Water that gets past the cladding gets directed back out before it reaches your interior.
Wind Resistance
The 0.079″ wall thickness and reinforced corner construction create a frame that resists deflection under wind pressure. With impact-resistant laminated glass specified, the assembly meets the wind-borne debris requirements that Boca Raton building codes demand for our exposure. We’ve installed these units in waterfront homes where the design pressure ratings aren’t theoretical - they’re survival.
Security & Hardware
Zero visible hardware doesn’t mean zero security. The fixed sash is permanently captured in the frame. Tempered or laminated glass options resist forced entry far better than standard annealed glass. For ground-floor installations or any Boca Raton home where security is a priority, the VLX 80 delivers protection through permanent mechanical engagement and glass selection, not visible locks that advertise vulnerability.
Color & Glass Options
The six finish options cover the full architectural spectrum we see in Boca Raton.
Premium Black dominates contemporary and minimalist homes from Royal Palm Yacht & Country Club to newer construction west of Lyons Road. It’s the finish that makes the window disappear into shadow, emphasizing glass over frame. Pure White serves traditional Florida architecture, coastal cottages, and any home where trim continuity matters. Anodized Silver reads as honest industrial material - appropriate for modernist homes that celebrate metal rather than hiding it.
Bronze and Champagne occupy the warm metallic middle ground. Bronze leans traditional, pairing well with tile roofs and stucco in established Boca Raton neighborhoods. Champagne offers subtle warmth without the heaviness of bronze, a sophisticated choice for transitional designs. Teak Wood finish delivers the aesthetic of natural grain with aluminum’s durability - no maintenance, no fading, no rot in our humidity.
Glass selection shapes function. Clear glass maximizes visible light transmission for true picture-window performance. Low-E coatings reflect infrared heat while passing visible light, the standard choice for east and west exposures in Boca Raton. Tempered glass provides safety through fracture pattern and strength. Laminated glass adds impact resistance, sound damping, and security - required for HVHZ compliance and recommended for any large pane near human activity. Gray Tint and Black Tint reduce glare and solar heat gain for south-facing walls or rooms where controlling brightness matters more than maximizing it. Frosted glass obscures view while transmitting light, useful for privacy applications on side walls or bathrooms where a fixed window still serves architecturally.
Installation by Sightline Windows & Doors Boca Raton in Boca Raton
We install every VLX 80 Fixed / Picture Window to manufacturer specification because deviation voids warranty coverage and compromises performance you paid for.
Our process starts with a pre-installation inspection of the rough opening. We verify dimensions, squareness, and structural condition. In Boca Raton’s coastal environment, we check for moisture intrusion in existing openings and remediate before new windows go in. Salt-damaged framing or compromised waterproofing gets addressed at this stage, not concealed.
Setting the unit demands level, plumb, and square within manufacturer tolerance. The VLX 80’s minimal frame profile offers little forgiveness for a racked installation - misalignment reads as a crooked sightline across a 120-inch span. We shim and secure to structural framing, not just drywall or trim.
Perimeter sealing follows AAMA 812 standard with low-expansion foam sealant at all joints between frame and rough opening. This creates an airtight, flexible seal that accommodates structural movement without cracking. We add compatible sealants at exterior interfaces per AAMA 2400/2410 installation standards.
Final verification includes a water test on every unit. We spray the exterior to confirm drainage pathways function and no water penetrates to the interior. Cleanup leaves your Boca Raton home ready for finish work.
Improper installation is the leading cause of window failure we see in callbacks on other companies’ work. Gaps in sealant, units out of square, missing shims - these defects don’t always show immediately, but they always show eventually. Our authorized ViewLux partnership means we install to standards that protect your investment and maintain warranty eligibility.
Frequently Asked Questions - VLX 80 Fixed / Picture Window
Lead time typically runs 6 to 10 weeks from signed approval to delivery, depending on glass selection and finish availability. Custom sizes at the maximum 120-inch span may extend toward the longer end. We coordinate delivery with your project schedule to avoid job-site storage in Boca Raton’s weather. Call (561) 200-8592 to check current lead times for your specific configuration.
The NFRC-rated thermal performance of the VLX 80 with Low-E glass may contribute to whole-home energy efficiency improvements that qualify for federal tax credits under current programs. We provide NFRC performance documentation for your tax preparer, but we don’t provide tax advice - consult your CPA to confirm eligibility based on your complete project scope and the tax year in question.
ViewLux provides a limited lifetime warranty on the aluminum frame and finish, with glass coverage for seal failure and stress fractures under normal conditions. Warranty terms require installation by an authorized partner - which Sightline Windows & Doors Boca Raton is - following AAMA standards. Our workmanship carries a 10-year installation warranty covering leaks, air infiltration, and operational issues attributable to our labor.
Yes, within the maximum 120-inch width constraint. We measure your rough opening and specify the unit to fit, including custom height dimensions and mulled combinations for larger openings. Every VLX 80 we install in Boca Raton is made-to-order for the specific opening - no stock sizes forced into non-standard rough openings.
Rinse exterior frames quarterly with fresh water to remove salt accumulation, especially for oceanfront homes in Boca Raton. Wash with mild soap and water annually. Avoid abrasive cleaners or solvents that damage the finish. The anodized and painted finishes on the VLX 80 are engineered for coastal exposure and require minimal intervention beyond basic cleaning.
Get a Quote - VLX 80 Fixed / Picture Window in Boca Raton
Ready to see what your view could become? Call Sightline Windows & Doors Boca Raton at (561) 200-8592 to schedule your free on-site measurement. We’ll assess your opening, discuss glass and finish options for your specific exposure and architecture, and deliver a written line-item quote with no obligation. Every project starts with accurate information and ends with a window installed to last.
Written by the team at Sightline Windows & Doors Boca Raton, authorized ViewLux installation partner serving Boca Raton, FL.
